Case Report - (2013) Volume 4, Issue 3
Dystonia is a syndrome characterized by sustained muscle contractions causing twisting or abnormal posturing. Secondary dystonia is well known subsequent to lesions of the brain. A patient was a 50-year-old man, and he experienced traffic accident. He suffered bilateral hemiparesis by cervical vertebrae damage according to the accident. Although the organic brain damage was not found, left lateral hemidystonia and blepharospasm were observed after injury. We measured cerebral glucose metabolism of the patient using positron emission tomography with 18F-fluorodeoxyglucose, and compared with 20 normal subjects (10 men and 10 women; mean age, 50.9 ± 17.1 years). Cerebral glucose hypermetabolism was observed in both sides of the thalamus, putamen and primary somatosensory area of patient compared with normal subjects. The results of functional imaging studies of dystonia are often interpreted using the present anatomical model of information flow in the basal ganglia-thalamo-cortical motor circuit. Glucose hypermetabolism in the thalamus, putamen, and primary somatosensory area, may be reflecting existence of dystonic diseases.
Keywords: Blepharospasm; Brain metabolism; Dystonia; Hemidystonia; Positron emission tomography; Traumatic injury
Dystonia is a syndrome characterized by sustained muscle contractions causing twisting or abnormal posturing [1]. Secondary dystonia is well known subsequent to lesions of the basal ganglia [2], thalamus, or brainstem [3]. Hemidystonia defined as involuntary, sustained posturing of the unilateral arm, leg, and face sometimes occurs following head trauma, with the cause of the contralateral basal ganglia or pontomesencephalic lesions [2]. On the other hand, blepharospasm is a form of focal dystonia characterized by involuntary movements of the musculature of the upper face. It has been reported that secondary blepharospasm is caused by infarctions in the thalamus [4], striatum [5], and brainstem [6], while there was no report of secondary blepharospasm which did not have structural lesions in these areas. We have been studying a rare case with hemidystonia and blepharospasm following traffic accident, which had no structural lesions in the brain. Here, we presented cerebral glucose metabolism characteristic of dystonia using positron emission tomography (PET) and 18F-fluorodeoxyglucose (FDG).
Case presentation
A 50-year-old right-handed man without any past history of serious illness experienced traffic accident 10 years ago. Although the organic brain damage was not found, bilateral hemiparesis by cervical vertebrae damage was observed just after the accident. We observed tactile hypesthesia of left side of the body and loss of muscle strength of left. In addition, pain and hemidystonia of left arm and leg induced by tactile stimulus was also observed. He was conscious of the pain of the left arm induced by slight passive movements. Eye movements were full and smooth, but he required efforts to see left and upper left directions. Though no noticeable wounds were found on the head or face, he might have received the blow in the head or face. He came to feel dazzling after injury. Several months after the accident, he came to feel the difficulty of bilateral eyelids opening and twitching symptoms of the surrounding area of eyes. We diagnosed the condition of his eyes as blepharospasm, because we observed involuntary movements of the eyelids and abnormalities of blinking. Moreover, we surmised that his dazzling was photophobia, while blepharospasm patients frequently experience dazzling or eye pain [7].
The control subjects were 20 normal volunteers (10 men and 10 women; mean age, 50.9 ± 17.1 years). None of the participants had other neurologist-diagnosed neuro-psychiatric diseases or a family history of dystonic disorders. Neither the control subjects nor the patient had taken any neuro-psychiatric drugs.
Informed consent was obtained from each subject before study participation, and the Institutional Ethics Committee of Tokyo Metropolitan Institute of Gerontology approved the protocol. All the procedures conformed to the tenets of the Declaration of Helsinki.
MRI scanning
Magnetic resonance imaging (MRI) scans were obtained from a patient to screen for organic brain disorders with a 1.5-T Signa Horizon scanner (General Electric, Milwaukee, WI). Trans-axial images with T1-weighted contrast (3DSPGR; TR=9.2 ms, TE=2.0 ms, matrix size=256 × 256 × 124, voxel size=0.94 × 0.94 × 1.3 mm), T2-weighted contrast (First Spin Echo; TR=3000 ms, TE=100 ms, matrix size=256 × 256 × 20, voxel size=0.7 × 0.7 × 6.5 mm) FLAIR contrast (2D; TR=10000 ms, TE=100 ms, matrix size=256 × 256 × 20, voxel size=0.7 × 0.7 × 6.5 mm), and diffusion-weighted contrast (2D; TR=6000 ms, TE=minimum, matrix size=128 × 128 × 20, voxel size=0.7 × 0.7 × 6.5 mm) were obtained.
PET data acquisition
PET scans were obtained using the SET 2400W scanner (Shimadzu, Kyoto, Japan) at the Positron Medical Center, Tokyo Metropolitan Institute of Gerontology. A bolus of 2.5 MBq/kg body weight FDG was injected intravenously into subjects. The subjects were then instructed to lie down with their eyes closed. A 6-min emission scan in the 3-dimensional acquisition mode was initiated 45 min after the injection, and 50 trans-axial images with an inter-slice interval of 3.125 mm were obtained (matrix size=128 × 128 × 63, voxel size=2.0 × 2.0 × 3.125 mm). We monitored the subjects with a video camera during the scans and observed no extra movements in the face or other body parts. The tomographic images were reconstructed by the filtered backprojection method using a Butterworth filter (cut-off frequency, 1.25 cycles/ cm; order, 2). Attenuation was corrected through performance of a transmission scan using a 68Ga/68Ge rotating source.
Data processing and statistical analysis
The PET images were processed using the statistical parametric mapping (SPM8) software [8], which was implemented in MATLAB (MathWorks, Sherborn, MA). Statistical parametric maps combine the general linear model and the theoretical Gaussian fields to make statistical inferences about regional effects. All PET images were spatially normalized to a standard template produced by Montreal Neurological Institute using a house-made template of FDG-PET images.
We defined 8.5-mm-diameter regions of interest on normalized PET images of both sides of the cerebellum, thalamus, caudate nucleus, putamen, primary somatosensory area (PSA), and we measured the cerebral glucose metabolism levels of each subject. Cerebral glucose metabolism level of each part was normalized to the mean of whole brain. We defined a significant change of cerebral glucose metabolism in a patient as an increase or decrease over the normal mean ± 2 SDs [9].
MRI revealed that there was no organic brain lesion in the patient. FDG-PET images of patient and normal subject are shown in Figure 1. Cerebral glucose hypermetabolism was observed in both sides of the thalamus, putamen and PSA of the patient compared with normal control subjects (Table 1).

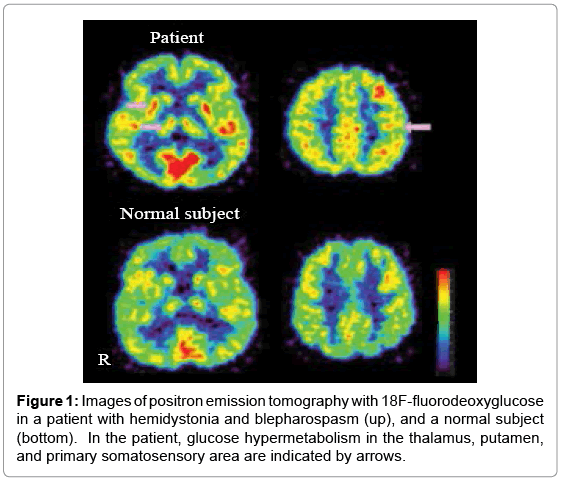

Figure 1: Images of positron emission tomography with 18F-fluorodeoxyglucose in a patient with hemidystonia and blepharospasm (up), and a normal subject (bottom). In the patient, glucose hypermetabolism in the thalamus, putamen, and primary somatosensory area are indicated by arrows.
| Thalamus | Caudate | Putamen | PSA | Cerebellum | ||
| Patient | Right | 1.34* | 1.27 | 1.51* | 1.41* | 1.10 |
| Left | 1.38* | 1.26 | 1.54* | 1.44* | 1.08 | |
| Average (SD) of normal subjects | ||||||
| Right | 1.18 | 1.21 | 1.35 | 1.13 | 1.03 | |
| (0.075) | (0.094) | (0.079) | (0.070) | (0.086) | ||
| Left | 1.20 | 1.23 | 1.34 | 1.15 | 1.02 | |
| (0.060) | (0.089) | (0.078) | (0.056) | (0.081) | ||
Mean of whole brain = 1.0
*Significant increase (over the normal average + 2 SD)
PSA: primary somatosensory area
Table 1: Cerebral glucose metabolism in a patient.
There have been reported hemidystonia or other dystonic diseases after head trauma. Krauss et al. reviewed patients with hemidystonia following head trauma, and CT or MRI revealed that all of the patients had contralateral basal ganglia or pontomesencephalic lesions [2]. Secondary blepharospasm is also caused by infarctions in the thalamus [4], striatum [5], and brainstem [6]. As far as we searched, there was no report of secondary hemidystonia or secondary blepharospasm, which did not have structural lesions in the brain. However, it has been reported that cervical dystonia following neck trauma [10] and oromandibular dystonia following facial injury [11] could occurred without brain lesions. Moreover, peripheral injuries to the face or neck have been implicated in many cases of focal or segmental dystonia [12,13]. The physiological mechanism of peripheral trauma-induced dystonia is not known, while some experimental studies suggest that peripheral injury can lead to reorganisation at cortical, subcortical and spinal cord levels resulting in motor dysfunction [11]. De Ceballos et al. observed that thermal injury to one limb in rats resulted in a reduction of leu-enkephalin concentration in the globus pallidum and striatum and met-enkephalin in the striatum [14]. From these observations, hemidystonia and blepharospasm of our patient might be caused by cervical vertebrae damage or facial bruise at the time of the traffic accident. There were several differences in clinical features between hemidystonia and blepharospasm of our patient. Hemidystonia was observed just after the accident, while the symptoms of blepharospasm gradually developed in several years after the accident. The blepharospasm was observed continuously without being affected by sensory stimuli. Hemidystonia of him was induced by tactile stimulus, but blepharospasm was not induced by the same stimulus. Therefore, it seems that blepharospasm was not associated with hemidystonia, and we suspected that blepharospasm is isolated symptom, not a part of hemidystonia.
We observed glucose hypermetabolism in both side of the thalamus, putamen and PSA of the patient. The results of functional imaging studies are often interpreted using the present anatomical model of information flow in the basal ganglia-thalamo-cortical motor circuit [15,16] (Figure 2). In our previous PET study, we also observed significant hypermetabolism in the thalamus, and we concluded that hyperactivity of the circuit may be relevant to the cause of essential blepharospasm [17]. Other studies also showed cerebral glucose hypermetabolism in the striatum and thalamus of patients with dystonia [18,19]. Moreover, there are several previous reports that activation in the somatosensory cortex was regarded during movement task in dystonic diseases [20,21]. It is surmised that cerebral glucose hypermetabolism in the thalamus, putamen, and PSA, was reflecting the existence of dystonic diseases in the present case. In the present case, we observed glucose hypermetabolism bilaterally, though he had a left lateral hemidystonia. The hemidystonia of him was observed only with tactile stimulus. Cerebral glucose metabolism was measured in the state that he was keeping quiet, and we did not observe the symptoms of hemidystonia during PET examinations. However, his symptom of bilateral blepharospasm was continued at the time of PET scanning. Bilateral glucose hypermetabolism in the thalamus, putamen and primary somatosensory area which we observed may reflect the symptom of blepharospasm.

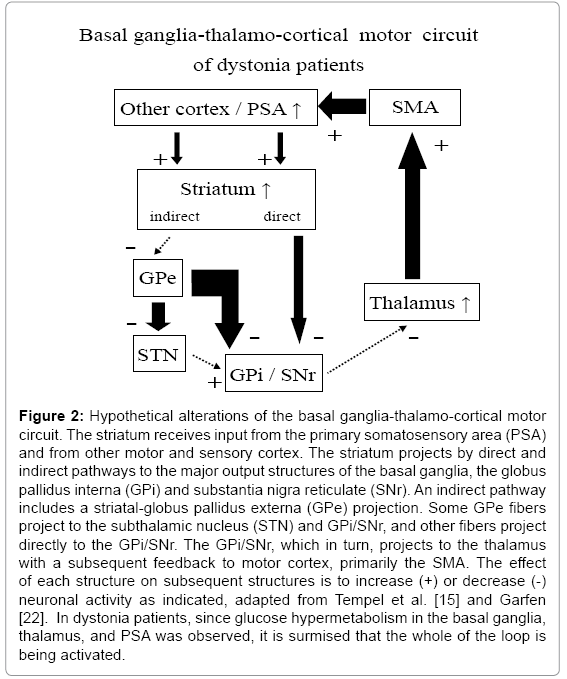

Figure 2: Hypothetical alterations of the basal ganglia-thalamo-cortical motor circuit. The striatum receives input from the primary somatosensory area (PSA) and from other motor and sensory cortex. The striatum projects by direct and indirect pathways to the major output structures of the basal ganglia, the globus pallidus interna (GPi) and substantia nigra reticulate (SNr). An indirect pathway includes a striatal-globus pallidus externa (GPe) projection. Some GPe fibers project to the subthalamic nucleus (STN) and GPi/SNr, and other fibers project directly to the GPi/SNr. The GPi/SNr, which in turn, projects to the thalamus with a subsequent feedback to motor cortex, primarily the SMA. The effect of each structure on subsequent structures is to increase (+) or decrease (-) neuronal activity as indicated, adapted from Tempel et al. [15] and Garfen [22]. In dystonia patients, since glucose hypermetabolism in the basal ganglia, thalamus, and PSA was observed, it is surmised that the whole of the loop is being activated.
We experienced a patient with hemidystonia and blepharospasm following traffic accident, and observed cerebral glucose hypermetabolism in the thalamus, putamen, and PSA.
This work was supported by the Benign Essential Blepharospasm Research Foundation (M. Kiyosawa) and Grants-in-Aid for Scientific Research No. 18791310 (YS) and No. 20591038 (K. Ishii) from the Japan Society for the Promotion of Science.
