Research Article - (2014) Volume 5, Issue 5
Vascular disease is associated with cognitive impairment. White matter hyperintensities (WMHs), as detected by
brain magnetic resonance imaging (MRI), are associated with cognitive impairment and considered to be a marker
of cerebral microvascular abnormality. Ankle-brachial pressure index (ABI) and pulse wave velocity (PWV) are noninvasive
methods to assess blockage and stiffness in peripheral arteries, respectively. We investigated the
associations of ABI and PWV with WMHs and cognition. We included 242 subjects representing 56 controls, 75
patients with mild cognitive impairment, and 111 patients with Alzheimer’s disease. We assessed brachial-ankle
PWV (baPWV), ABI, general cognitive status with the Korean Mini-Mental State Examination (K-MMSE), and WMHs
with brain MRI. The mean age of subjects correlated with values of baPWV (r=0.432, p<0.001) and ABI (r=-0.192,
p=0.002). Among vascular risk factors, baPWV was positively associated with the presence of intracerebral artery
stenosis (r=0.102, p=0.028) and ABI was negatively correlated with the presence of hypertension (r=-0.150,
p=0.017) and smoking (r=-0.176, p=0.005), independent of age. After adjusting for age and vascular risk factors,
baPWV was associated with WMHs (r=0.192, p=0.002), and ABI was associated with the K-MMSE score (r=0.14,
p=0.028). There was no association of ABI with WMHs and of baPWV with K-MMSE. An increased baPWV was
associated with the severity of WMHs, and a lower ABI was associated with cognitive impairment. Management of
peripheral vascular disease may help prevent the progression of WMHs or cognitive decline.
Keywords: Ankle-brachial pressure index; Pulse wave velocity; Peripheral vascular disease; White matter hyperintensities; Aging; Cognition; Dementia
Cognitive impairment and dementia may result from vascular disease including cerebrovascular disease [1]. In addition to white matter hyperintensities (WMHs), which are markers of cerebral micorvasculopathy, the ankle-brachial pressure index (ABI) and pulse wave velocity (PWV), markers of peripheral arterial disease, are known to be associated with cognitive impairment [2-6]. ABI and PWV are non-invasive measures to assess peripheral arterial health quantitatively, by measuring arterial blockage and stiffness, respectively. ABI is the ratio of the ankle and the brachial systolic blood pressure and is used to assess the severity of arterial occlusion in the leg. A reduction of ABI suggests the presence of peripheral arterial disease due to atherosclerosis; atherosclerosis in the lower legs represents a similar pathology in other arterial systems [7,8]. To assess arterial stiffness, PWV is measured as pressure waves travel a given distance between two sites along the arterial system. Increased arterial stiffness adversely affects the brain, with high pulsatile flow damaging cerebral microvessels, leading progressively to edema, hemorrhage, and inflammation [9].
Similarly, PWV has been reported to be associated with white matter hyperintensities (WMHs) on the brain magnetic resonance imaging (MRI) and other brain structures [10-18]. The etiology of WMHs may be related to disruption of the blood-brain barrier or leakage of plasma due to cerebral small vessel disease or cerebral microvascular arteriosclerosis [19-23]. Greater WMH volume tends to be associated with poorer cognitive functioning among non-demented older adults [24], and WMH volume among older adults with mild cognitive impairment (MCI) is a risk factor for conversion to Alzheimer’s disease [25]. However, the associations of both ABI and PWV, with WMHs and cognitive impairment, are not yet clear.
Several mechanisms may explain the cognitive associations of ABI and PWV. First, arterial stiffness often damages pressure pulsatility, resulting in hemodynamic stress in the brain. The high levels of central pulse pressure in the brain result in dysfunction to its microcirculation [26,27]. Moreover, high pulse pressures may result in structural changes to cerebral blood vessels, which in turn may interfere with the transport of important nutrients to the brain and interfere with the clearance of toxic byproducts out of the brain [28]. Second, atherosclerosis may induce cerebral hypoperfusion leading to cerebral hypoxia. These conditions may destabilize neurons and synapses, generating a neurodegenerative process characterized by formation of senile plaques, neurofibrillary tangles, and amyloid angiography [29,30].
We presently evaluated the association of WMHs, markers of cerebral microvasculopathy, with peripheral artery disease, as indicated by ABI and brachial-ankle PWV (baPWV). Additionally, we analyzed the association of ABI and baPWV with cognitive impairment, as assessed with a brief neuropsychological measure. We hypothesized that both ABI and baPWV would be associated with WMHs, and thereby cognitive impairment as well. A strategy based on analyses of surrogate markers, such as ABI and PWV, may result in a targeted and effective prevention of WMHs and cognitive impairment.
Subjects
This was a single-center observational study approved by the Institutional Review Board of The Catholic University of Korea, Bucheon St. Mary’s Hospital. Subjects provided informed consent. Between May 2011 and December 2012, we consecutively enrolled patients who visited the hospital’s Department of Neurology clinic. A total of 242 subjects were recruited, including 56 controls, 75 patients with MCI, and 111 patients with AD. Healthy adults who requested a medical evaluation for a routine assessment of possible cerebrovascular diseases, due to concerns related to stroke or positive vascular risk factors, were enrolled as controls. Control subjects had no cognitive complaints and their scores on the Korean version of MMSE (K-MMSE) [31] were above -1.0 standard deviations compared with age- and education-matched norms, and their clinical dementia rating (CDR) [32] scores were zero. Patients with MCI fulfilled the clinical diagnostic criteria for MCI [33]. Criteria from the National Institute of Neurologic and Communicative Disorders as well as the Stroke and the Alzheimer Disease and Related Disorders Association [34] were used to diagnose patients with probable AD.
All subjects underwent physical and neurological examinations, blood tests (i.e., complete blood count, blood chemistry, vitamin B12/folate, syphilis serology), thyroid function tests, assessment of global cognitive functioning with the K-MMSE, MRI and MR angiography (MRA) of the brain, and measurements of ABI and baPWV. The height and weight of subjects were measured, and body mass index (BMI) was calculated. Subjects’ history of vascular risk factors (i.e., hypertension, diabetes, hyperlipidemia, ischemic heart disease, stroke, and smoking) was recorded. Subjects were excluded from the study if there were large territorial infarcts on MRI, were younger than 55 years of age, had a history of diseases (other than MCI or AD) that may cause cognitive disorder, or had major psychiatric disease.
MRI assessment
All patients had 1.5T brain MRI (Intera; Philips Medical Systems, Best, The Netherlands), including fluid-attenuated inversion recovery (FLAIR) imaging and T1/T2-weighted imaging. The slice thickness was 5 mm without an interslice gap. The imaging protocol for MRA was the three-dimensional time-of-flight method. The periventricular WMHs (PVHs) and the deep WMHs (DWHs) were separately evaluated, as proposed by the Clinical Research for Dementia Of South Korea (CREDOS) [35]. The severity of DWHs was rated according to their largest diameter, with the categories D1 (<10 mm), D2 (≥ 10 and <25 mm), and D3 (≥ 25 mm). The PVHs were rated as P1 if the cap and band were <5 mm, P2 if the cap or band was ≥ 5 and <10 mm, and P3 if the cap or band was ≥ 10 mm.
With modification from prior criteria [36], we added Grade 0 (absence; D0 or P0) in the individual ratings of PVHs and DWHs, and the severity of total WMHs was reclassified into none (Grade 0), minimal (Grade 1), moderate (Grade 2), and severe (Grade 3) [35]. Table 1 presents modified CREDOS ratings of WMHs for all subjects.
D0 (none) |
D1 (<10 mm) |
D2 (10-24 mm) |
D3 (>25 mm) |
|
---|---|---|---|---|
P0 (none) | None (n=26) |
Minimal (n=10) |
||
P1 (capping/banding, both <5 mm) | Minimal (n=35) |
Minimal (n=32) |
Moderate (n=2) |
|
P2 (in between) | Minimal (n=5) |
Minimal (n=49) |
Moderate (n=17) | Moderate (n=2) |
P3 (either capping/banding≥10 mm) | Moderate (n=23) | Moderate (n=28) | Severe (n=13) |
Table 1: Ratings of the white matter hyperintensities modified from CREDOS The periventricular hyperintensities and the deep white matter hyperintensities were separately evaluated and the results were combined to give a representative rating of the WMH as ‘minimal, moderate’ and ‘severe’. CREDOS, Clinical Research for Dementia of South Korea; D, rating of the deep white matter hyperintensities; P, rating of the periventicular hyperintensities.
ABI and baPWV measurements
The ABI and the baPWV were measured by an oscillometric device (form PWV/ABI, COLIN, Tokyo, Japan). In addition to recording the limb lead echocardiogram, mechano-cardiograms were simultaneously recorded by attaching blood pressure cuffs with a tonometic sensor to the upper arm and ankle. The ABI was determined as the ratio of ankle systolic blood pressure to brachial systolic blood pressure. To calculate the ABI, brachial pressure and ankle pressure were measured on both the left and right limbs with subjects in the supine position. The high ankle pressure method was used. After checking the systolic pressures in the dorsalis pedis and posterior tibial arteries of both the legs, the higher of these two ankle pressures for each leg is then divided by the higher brachial systolic pressure [37].
The baPWV was calculated by time-phase analysis. The time interval between the wave front of the brachial waveform and that of the ankle waveform was defined as the time interval between the brachium and ankle (ΔTba). The distance between sampling points of baPWV was calculated automatically according to the height of the subject. The path length from the suprasternal notch to the brachium (Lb) was obtained from superficial measurements and was expressed using the following equation: Lb = 0.2195 × height of the patient (in cm) -2.0734. The path length from the suprasternal notch to the ankle (La) was obtained from superficial measurements and was expressed using the following equation: La = (0.8129 × height of the patient (in cm)+12.328). Finally, the following equation was used to obtain baPWV: baPWV = (La-Lb)/ΔTba [38]. The ABI and baPWV from both right and left limbs were recorded.
Cognitive and neurological measures
K-MMSE: The K-MMSE [31] is the Korean modification and translation of the mini mental state examination (MMSE) [39]. The MMSE is a frequently used instrument to assess global cognitive functioning and to identify individuals with cognitive impairment. Consistent with the MMSE, the K-MMSE scores range from 0-30, with lower scores indicating greater cognitive impairment.
Clinical Dementia Rating (CDR): The CDR [32,40] is a 5-point rating scale used to indicate the presence and level of severity of AD. Individuals’ score on the CDR is based on ratings of their cognitive and functional performance in six domains, memory, orientation, community affairs, judgment and problem solving, personal care, home and hobbies, as assessed during a structured-interview [40]. Each of these domains is rated on the following 5-point scale 0 (no impairment), 0.5 (questionable impairment, 1 (mild impairment), 2 (moderate impairment) to 3 (severe impairment), with the exception of personal care, which is rated on a 4 point scale (with no rating of .5) [40]. Scores from each of these domains are combined with an algorithm to create a composite CDR [40]. This composite, or global CDR, falls into the following categories: 0 (no dementia), .5 (questionable), 1 (mild dementia), 2 (moderate dementia), and 3 (severe dementia) [40]. The CDR also generates Sum of Boxes score, which is calculated by summing each of the six domain scores, with scores ranging from 0 to 18 (higher scores indicating greater impairment).
Hachinski Ischemic Score (HIS): The HIS [41] is a brief tool to help differentiate vascular dementia from AD. It consists of 13 items, each representing a feature believed to be associated with vascular dementia [42]. Items are rated as either a one or a two, and are summed to create a total score [42]. Diagnostic differentiation is based on specific cut-off scores, with a score equal to or less than four suggesting AD and a score of seven points or more suggesting vascular dementia (total scores equaling five or six were later considered to be a mixed form) [42]. Because this study included patients with AD, not vascular dementia, for the analyses we used just total scores for evaluating the vascular risks of subjects, without consideration of the cut-off scores for diagnostic differentiation.
Statistical analyses
Preliminary analyses examined differences between three subject groups (controls, AD, and MCI) on demographic characteristics, BMI, and medical history, with analysis of variance (ANOVA) and chi-square analyses (where appropriate). Group differences were further examined for cognitive and neurological measures’ scores, WMH severity levels, baPWV, and ABI with analysis of covariance (ANCOVA) and chi-square test, adjusting for age and years of education. The Scheffé method was used for testing multiple comparisons across the three subject groups. Partial correlations were used to examine associations among the key variables, baPWV, ABI, WMH ratings, and the K-MMSE score, while controlling for age and vascular risk factors, among the total sample. This correlation analysis was further repeated for each of the three subject groups. The right and left ABI and baPWV were averaged and then entered in to the correlation analysis. A probability value of p<0.05 was considered statistically significant, and all tests were 2-tailed. The data were analyzed with SPSS 15.0 (SPSS, Chicago, IL, USA).
Characteristics of the subjects
A total of 242 subjects were included in this study. The majority of subjects were female (72.73%, n = 176 subjects). The mean age of subjects significantly differed across the three subject groups, with the control group being the youngest in age and the AD group being the oldest. Subjects with AD had significantly lower years of education than subjects with MCI and controls. After adjusting for age and years of education, K-MMSE score, CDRs, and WMH ratings significantly differed across the three subject groups. There were no group differences for the Hachinski ischemic scale, BMI, or vascular risk factors. After adjusting for age, ABI values, but not baPWV values, significantly differed across the three groups. Table 2 presents means, standard deviations, ANOVA, ANCOVA, and chi-square results.
Control (n=56) | MCI (n=75) | AD (n=111) | p value | Multiple comparison (p < .05) |
|
---|---|---|---|---|---|
Age (years) | 66.46±6.59 | 70.01±8.09 | 75.63±5.84 | <0.001 | AD vs. MCI vs. Control |
Sex (male:female) | 17:39 | 22:53 | 27:84 | 0.633 | |
Education (years) | 10.19±4.12 | 6.55±4.60 | 4.95±4.76 | <0.001 | AD vs. MCI, Control |
K-MMSE | 28.07±1.53 | 22.89±3.38 | 15.83±5.23 | <0.001† | AD vs. MCI vs. Control |
CDR | 0.13±0.22 (0~0.5) | 0.48±0.10 (0~0.5) | 1.25±0.84 (0.5~3) | <0.001† | AD vs. MCI vs. Control |
SOB | 0.28±0.41 (0~1.5) | 1.75±0.93 (0.5~5) | 7.02±4.69 (0.5~18) | <0.001† | AD vs. MCI, Control |
HIS | 1.50±1.31 (0~4) | 1.92±1.73 (0~7) | 2.51±2.24 (0~10) | 0.294 | |
BMI | 23.30±2.68 | 23.53±2.92 | 22.98±3.27 | 0.471 | |
History of | |||||
Hypertension | 24 (42.86%) | 40 (53.33%) | 64 (57.66%) | 0.331 | |
Diabetes mellitus | 9 (16.07%) | 17 (22.67%) | 32 (28.83%) | 0.292 | |
Hyperlipidemia | 9 (16.07%) | 10 (13.33%) | 18 (16.22%) | 0.842 | |
Ischemic heart disease | 5 (8.93%) | 7 (9.33%) | 10 (9.01%) | 0.988 | |
Stroke | 1 (1.79%) | 5 (6.67%) | 12 (10.81%) | 0.138 | |
Smoking | 3 (5.36%) | 5 (6.67%) | 10 (9.01%) | 0.761 | |
Intracerebral artery stenosis | 11 (19.64%) | 35 (46.67%) | 74 (66.67%) | 0.006 | AD, MCI vs. Control |
Rating of WMHs | 0.95±0.56 (0~2) | 1.11±0.72 (0~3) | 1.59±0.68 (0~3) | 0.001 | AD vs. MCI, Control |
PVHs | 1.18±0.86 (0~3) | 1.45±1.07 (0~3) | 2.08±0.89 (0~3) | 0.006 | AD vs. MCI, Control |
DWMHs | 0.73±0.62 (0~2) | 0.82±0.75 (0~3) | 1.36±0.89 (0~3) | 0.004 | AD vs. MCI, Control |
R_baPWV (sec/cm3) | 1667.70±422.97 | 1670.89±352.76 | 1891.98±447.25 | 0.248* | |
L_baPWV (sec/cm3) | 1676.38±377.53 | 1693.25±367.04 | 1896.21±437.83 | 0.367* | |
R_ABI | 1.14±0.06 | 1.13±0.10 | 1.08±0.10 | 0.010 | AD vs. MCI, Control |
L_ABI | 1.15±0.06 | 1.13±0.10 | 1.10±0.11 | 0.012 | AD vs. Control |
Table 2: Clinical characteristics of the subjects; Values are presented as mean ± standard deviation (range) or number and percentage. Comparisons among three groups by using the analysis of covariance and chi-square test, where appropriate. Age and †education years were adjusted for the analyses. *Differences of baPWV values were significant before adjusting for age (all, p<0.001). MCI, mild cognitive impairment; AD, Alzheimer’s disease; MMSE, mini-mental state examination; CDR, clinical dementia rating; SOB, sum of boxes; HIS, Hachinski ischemic scale; BMI, body mass index; PVHs, periventricular hyperintensities; DWMHs, deep white matter hyperintensities; baPWV, brachial-ankle pulse wave velocity; ABI, ankle-brachial pressure index; R, right side; L, left side.
Association of ABI and baPWV with WMHs and K-MMSE
Table 3 presents partial correlations among the study’s key variables, ABI, baPWV, WMH ratings, and K-MMSE total score, after adjusting for age or both age and vascular risk factors. Both baPWV and ABI were significantly correlated with age, with the correlations being negative and positive, respectively. Among the vascular risk factors, baPWV was positively associated with the presence of intracerebral artery stenosis and ABI was negatively associated with the presence of hypertension and smoking, after adjusting for age.
WMHs† | K-MMSE† | Age | Vascular risk factors* | |
---|---|---|---|---|
baPWV | r=0.192 | r=-0.009 | r=0.432 | (ICA stenosis) |
p=0.002 | P=0.447 | p<0.001 | ||
(PVHs) r=0.207, p=0.001 (DWMHs) r=0.129, p=0.044 |
||||
ABI | r=0.036 | r=0.111 | r=-0.192 | (HTN) |
P=0.586 | p=0.044 | p=0.002 | ||
(Smoking) | ||||
(ICA stenosis) | ||||
Table 3: Correlation analysis of baPWV and ABI with WMHs and MMSE, adjusted for age and vascular risk factors (n=242); The analyses were adjusted for *age or †age and vascular risk factors. baPWV, brachial-ankle pulse wave velocity; ABI, ankle-brachial pressure index; WMHs, white matter hyperintensities; MMSE, mini-mental state examination; ICA, intracerebral artery; HTN, hypertension.

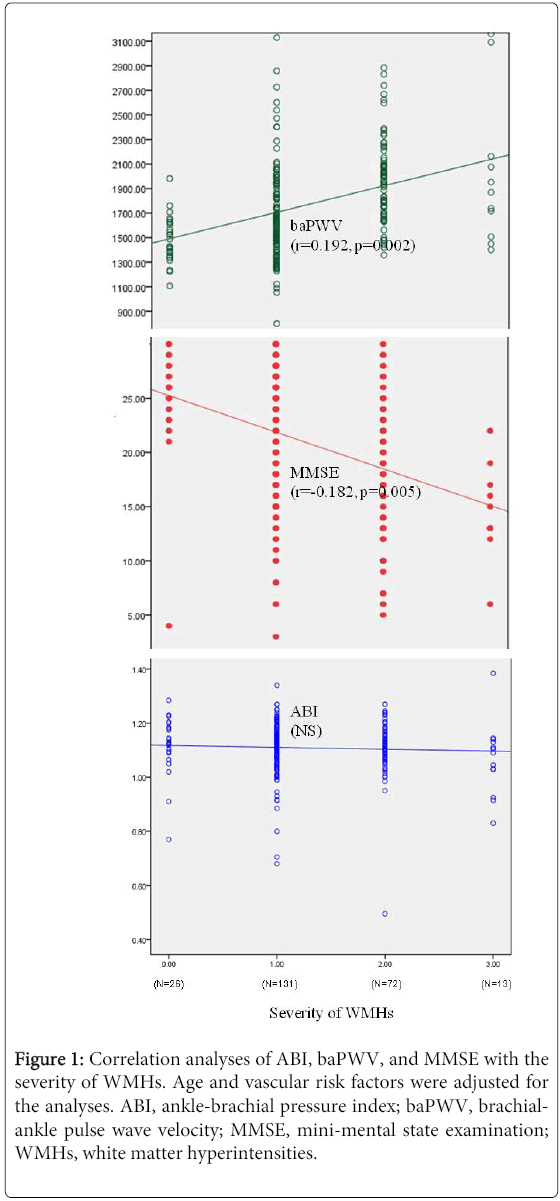

After adjusting for age and vascular risk factors, baPWV was positively associated with both PVHs and DWHs, in addition to WMHs. However, ABI did not differ according to the severity of WMHs (Figure 1).
A significant positive association between general cognitive status and peripheral arterial health was observed, specifically between the K-MMSE total score and ABI. A similar association was not observed for baPWV. The K-MMSE score was negatively associated with WMH severity (Figure 1). Among patients with AD, the K-MMSE was significantly associated with ABI (r=0.214, p=0.028) and WMHs were significantly associated with baPWV (r=0.261, p=0.007). Correlations among the key variables, ABI, baPWV, WMH ratings, and K-MMSE total score, were not statistically significant within the control and MCI groups.
Early detection of stroke risk factors may contribute to stroke reduction and prevention of vascular-related cognitive decline. Routine brain MRI screening for vascular risk factors, within neurologically asymptomatic older adults, is costly and not economical for primary use. Measurements of the ABI and PWV provide one of the most practical, and relatively cost-effective tools to objectively assess the presence of atherosclerosis and arterial stiffness. Several previous studies [2,5,43] suggested that, even at subclinical levels, atherosclerosis and arterial stiffness are associated with an increased risk of progressive cognitive decline and that ABI and PWV might be of clinical value in identifying older people who are at increased risk of cognitive impairment and stroke.
This study demonstrated that ABI and baPWV, clinical markers of peripheral artery disease, were associated with neurocognitive aging. Findings indicated that ABI and baPWV were associated with vascular risk factors. ABI was significantly associated with intracerebral artery stenosis; baPWV was significantly associated with hypertension, smoking, and intracerebral artery stenosis. In terms of the study’s key variables, ABI was associated with cognitive impairment and baPWV was correlated with WMHs, independent of age and vascular risk factors. Thus, the hypothesis that both ABI and baPWV would be associated with cognitive function and WMH ratings was partially supported.
Arterial stiffness has been previously demonstrated as an independent predictor of cardiovascular disease events and risk factors [44,45], which in turn are important predictors of cognitive decline. The relationship between WMHs and baPWV has also been reported. Increased baPWV has been significantly associated with WMHs in multivariate analyses [12-14,17], consistent with our study. This result supports the arteriosclerotic etiology of WMHs because an increased baPWV indicates progression of arteriosclerotic change. Prior findings have also shown null statistical findings regarding the association between ABI and WMHs [4,17], as was also shown in the present study. ABI might not be sufficient to predict WMHs, which result from various factors including demyelination as well as cerebrovascular disease [19,21,23].
Null findings regarding the association of baPWV and global cognitive functioning may be a result of the PWV measurement site. Non-significant associations between baPWV and cognitive impairment have been previously reported [6,46-48]. However, a number of studies [48-51] used carotid-femoral PWV (cfPWV) and found inverse relationships between cfPWV and MMSE. In contrast to cfPWV, the association between baPWV and cognitive function is less known [6,48]. Although baPWV tends to be associated with cfPWV [38,52] and cfPWV is the main determinant of baPWV [52], there is a substantial difference between the two techniques over the range of measurement [53]. The baPWV is affected by both central elastic arteries and peripheral muscular arteries [54], which may be able to compensate for the loss of compliance due to aging [55]. Our study also found that the association of baPWV with K-MMSE score disappeared after adjusting for age. Therefore, baPWV was not associated with cognitive function, and may not be a good marker for age-related arterial stiffness, compared to ABI and cfPWV.
In addition, the non-significant association between baPWV and cognitive function may be partly due to the brief assessment of cognitive function. The K-MMSE lacks sensitivity to detecting early stage dementia or subtle changes in cognition [31]. Performance on the K-MMSE may also be affected by situational and psychological conditions, and it is best to interpret its scores in the context of other relevant test scores and subjects’ histories. Similar to the current study’s results, findings from the Baltimore Longitudinal Study of Aging [56], indicated that persons with higher baseline PWV tended to experience declines on tests of verbal learning and delayed recall, and nonverbal memory; however, PWV was not predictive of performance on the MMSE.
There are several limitations for the present study. First, to assess cognitive status, only the K-MMSE was employed in this study. Second, we did not consider the use of antihypertensives or statins. Some of these medications may reduce arterial stiffness, and associations with PWV might be attenuated by use of these medications. Another limitation is that using a visual rating scale and integrating PVHs and DWHs into WMHs might be less accurate than directly measuring the quantitative volume of WMHs. Lastly, the cross-sectional design provides limited evidence for causal inference. Although not validated in the present study, the method used in this study has been validated in the previous study [38]. Comparative study with other non-invasive assessments with validation [57] of arterial stiffness also should be considered in the future.
In this study, we measured the associations of ABI and baPWV with cognitive impairment and WMHs through a cross-sectional study. A lower ABI value was an independent risk factor for cognitive impairment. Although a higher baPWV value was not, we are not able to completely rule out an association between increased PWV and risk of cognitive impairment due to a number of factors including the measurement site of PWV and use of the MMSE. However, a higher baPWV was associated with WMH severity. Further studies including both baPWV and cfPWV are needed to understand the exact roles in the cardiovascular system and brain function.
This study was performed by the financial support of the Catholic Medical Center Research Foundation made in the program year of 2012 and partly by a grant from the Korea Healthcare Technology R&D project, Ministry of Health & Welfare, Republic of Korea (HI10C2020). The authors thank Pamela E. May (Department of Psychology, Wayne State University) for consulting our research and English editing.
