The prion protein (PrP) consists of two isoforms, a host-encoded cellular isoform (PrP^C) and an abnormal protease-resistant pathogenic isoform (PrP^Sc); the latter is the causative agent of prion diseases. PrP^Sc stimulates the conversion of PrP^C into nascent PrP^Sc, and accumulation of PrP^Sc leads to central nervous system dysfunction and neuronal degeneration [1]. Initial degradation of PrP^C involves the cleavage of the NH₂-terminal fragment to produce a 17-kD COOH^- terminal polypeptide, which can be recovered in a Triton X-100 insoluble fraction [2-4]. The NH₂-terminal fragment itself functions as a putative targeting element [5,6] and is essential for both movement to the plasma membrane and modulation of endocytosis [7]. A NH₂-terminal GFP-tagged version of PrP^C (GFP-PrP^C) was found to anchor properly at the cell surface, and its distribution pattern was similar to that of endogenous PrP^C [8-11] and a COOH-terminal tagged version (PrP^CGFP) [12].

Knowledge of the physiological role of cellular prion protein is important for the understanding of prion disease; however, despite many efforts, the exact role of cellar prion protein remains unclear. For this reason, we have investigated cellular prion protein by transient transfection of fluorescent PrP^C. We previously demonstrated a microtubule (MT)-associated intracellular localization and movement of the NH₂-terminal fragment of fluorescent PrP^C [13] in mouse neuroblastoma neuro2a (N2a) cells, which are known to be infectable with PrP^Sc [14], and in HpL3-4 cells (a hippocampal cell line established from prnp-ablated mice [15]). We detected the NH₂-terminal fragment predominantly in intracellular compartments, while the COOHterminal fragment was predominantly detected at the cell surface membranes, overlapping with lipid rafts. The full length PrP^C showed a merged color of both terminals in the Golgi compartments. The NH₂-terminal fragment of PrP^C seems to reside inside vesicles, which may not reflect a distribution within any single specific organelle [13], where integral membrane and linker proteins would be required for interaction with MTs to bridge the luminal and cytoplasmic phases across membranes [16-18]. Accordingly we refer to this fragment hereafter as “vesicular GFP-PrP^C.”

Following transient transfection into N2a cells, vesicular GFPPrP^C exhibited an anterograde movement in the direction of the plasma membrane at a speed of kinesin super family KIF4 (140~ nm/ sec) and an inward retrograde movement at a speed of dynein (1,000~ nm/sec), as determined by real-time imaging studies. Kinesin and dynein inhibitors blocked the anterograde and retrograde movements of vesicular GFP-PrP^C, respectively, and anti-kinesin antibody blocked its anterograde movement, whereas anti-dynein blocked its retrograde movement [19]. These data suggest a kinesin (KIF4)-driven anterograde and dynein-driven retrograde movement of vesicular GFP-PrP^C; in addition, residues 53–91 and 23–33 were indispensable for interactions with kinesin and dynein, respectively [13,19]. These results were obtained using undifferentiated cultured cells, but little is known about the behavior of intracellular PrP^C in differentiated neuronal cells. We have recently established an N2a cell line that stably expresses GFP-PrP^C and have further examined the intracellular trafficking of vesicular GFP-PrP^C in these cells under the differentiated condition. These experiments have identified a significant reduction exclusively in the kinesin-driven anterograde, but not in the dyneindriven retrograde, velocity of vesicular GFP-PrP^C trafficking in the outgrowing neurites.

Antibodies and drugs

Anti-PrP rabbit polyclonal antibody K3 was raised against the PrP peptides (amino acid residues 76–90 in mouse PrP). Anti-tubulin antibody DM1A were purchased from Sigma-Aldrich Japan KK, Tokyo, Japan. Anti-KIF5C antibody was purchased from Abcam plc, Cambridge, UK.

Cell cultures, DNA transfection, and drug treatments

GFP-PrP was constructed as previously described [13,19]. The resulting plasmid was designated as pcDNA3.1-GFP-PrP. N2a cells were obtained from the American Tissue Culture Collection and grown at 37°C in MEM medium supplemented with 10% fetal bovine serum. N2a cells were stably transfected with pcDNA3.1-GFP-PrP using a DNA transfection kit (Lipofectamine, Life Technologies, CA, USA). Following stable transfection, cells were selected and maintained with 1 mg/ml of G418 (Wako Pure Chemical Industries, Osaka, Japan). Before imaging analyses, cells were differentiated for 7 days in the presence of 200 ng/ml NGF (Sigma-Aldrich Japan KK, Tokyo, Japan).

Immunofluorescence microscopy

Indirect immunofluorescence analyses were performed on cells rinsed with PBS containing Ca²⁺ and Mg²⁺ [PBS (+)] and fixed with 10% formalin in 70% PBS (+) for 30 min at room temperature. After four washes with PBS (−), the fixed cells were incubated in 10% FBS in PBS (−) for 30 min at room temperature. Cells were then incubated for 1 h at room temperature with antibodies at desired concentrations. After four washes with PBS(−), the cells were incubated for 1 h at room temperature with secondary antibodies, which were diluted 1:200 in PBS. The stained cells were washed four times with PBS(−) and mounted with SlowFade Antifade (Life Technologies, CA, USA). Samples were imaged using the Delta Vision microscope system (Applied Precision, Inc., Issaquah, WA, USA). Out-of-focus light in the visualized images was removed by interactive deconvolution.

Live cell imaging

Cells were cultured on 3.5 cm glass-bottom dishes (Matsunami Glass Ind., Ltd., Tokyo, Japan) and imaged using the Delta Vision microscopy system (Applied Precision Inc., Issaquah, WA, USA) equipped with an Olympus IX70 camera (Olympus Imaging Corp., Tokyo, Japan). Fluorescence signals were visualized using a quad beam splitter (Chroma Technology Corp., Rockingham, VT, USA ).

Antibody transfection

Antibodies were transfected into N2a cells using Chariot (Active Motif, CA, USA) following the manufacturer’s protocol. In brief, 2 ×10⁵ N2a cells were cultured in 3.5 cm glass-bottom dishes. Chariot (6 μl) diluted in DMSO (94 μl) was combined with 1.25 μg antibodies resuspended in 100 μl of PBS(−) and incubated at room temperature for 30 min. The cells were washed twice with 2 ml of PBS(−), and the Chariot–antibody complex was mixed with 400 μl Opti-MEM I medium (Life Technologies, CA, USA). The cells were incubated at 37°C in 5% CO₂ for 2 h and imaged using the Delta Vision microscopy system.

A cell line that stably expressed GFP-PrP was established by transfecting N2a cells with the plasmid and culturing the transfected cells in the presence of G418 (Figure 1A). The cells that stably expressed GFP-PrP exhibited the same expression pattern as the cells that showed transient expression (Figure 1B). When we added NGF to the stable expression cell line, the neurites extended and vesicular GFP-PrP^C was localized within the neurite. In contrast, undifferentiated cells contained vesicular GFP-PrP^C predominantly in intracellular compartments, revealing a dot-like distribution pattern (Figure 1C). Immunofluorescence microscopy observation of GFP-PrP^C along with endogenous PrP^C with MTs (by anti-PrP polyclonal antibody K3/anti-tubulin monoclonal antibody DM1A) revealed that PrP^C was localized on MTs in differentiated (Figures 2E-2H) and undifferentiated-N2a cells (Figures 2A-2D). This immunostaining profile supports our previous proposal that vesicular PrP^C consists of the NH₂-terminal PrP^C fragment and interacts with the MTs [13].

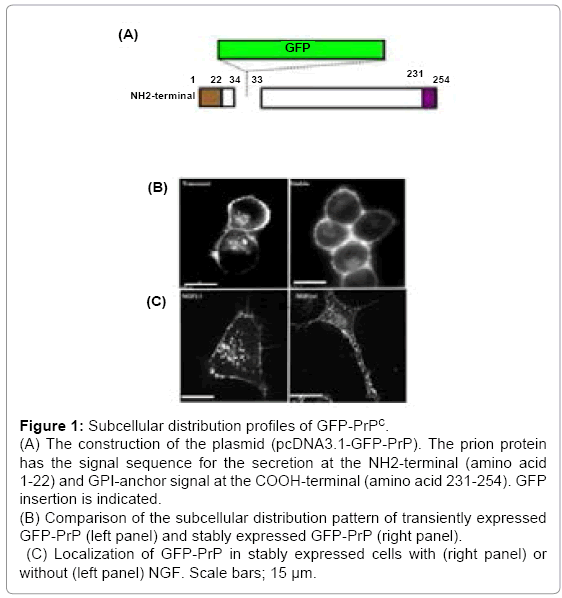

Figure 1: Subcellular distribution profiles of GFP-PrPC.
(A) The construction of the plasmid (pcDNA3.1-GFP-PrP). The prion protein has the signal sequence for the secretion at the NH2-terminal (amino acid 1-22) and GPI-anchor signal at the COOH-terminal (amino acid 231-254). GFP insertion is indicated.
(B) Comparison of the subcellular distribution pattern of transiently expressed GFP-PrP (left panel) and stably expressed GFP-PrP (right panel). (C) Localization of GFP-PrP in stably expressed cells with (right panel) or without (left panel) NGF. Scale bars; 15 μm.

Figure 2: Co-immunostaining of GFP-PrPC and endogenous PrPC with microtubules (MTs). Anti-tubulin DM1A (Panels A and E) and anti-PrP K3 (Panels B and F) detects PrPC along with MTs in the presence (Panels G-H; merged) or absence (Panels C-D; merged) of NGF. Panels D and H shows magnified images. In this experimental condition, anti-PrP polyclonal antibody K3 recognized endogenous and GFP-fused PrPC because it was raised against the PrP peptides (amino acid residues 76–90 in mouse PrP). Scale bars; 15 μm.

The intracellular trafficking of vesicular GFP-PrP^C was then examined by real-time imaging using NGF-differentiated and stably GFP-PrP expressed N2a cells. As shown in Figure 3, the neurite of the differentiated cells showed a reduction in the velocity of anterograde movement of vesicular GFP-PrP^C toward the plasma membranes (i.e., the speed was ~50 nm/sec, compared to the velocity of cell body movement of 140~ nm/sec). In contrast, the retrograde velocity in the neurite remained the same as that in the cell body.

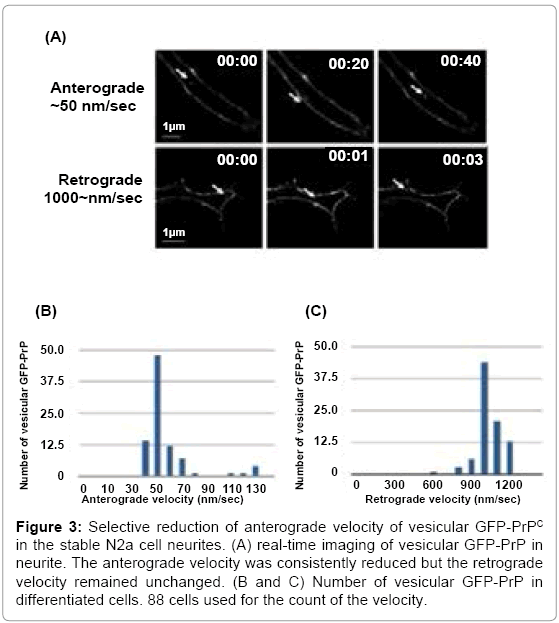

Figure 3: Selective reduction of anterograde velocity of vesicular GFP-PrPC in the stable N2a cell neurites. (A) real-time imaging of vesicular GFP-PrP in neurite. The anterograde velocity was consistently reduced but the retrograde velocity remained unchanged. (B and C) Number of vesicular GFP-PrP in differentiated cells. 88 cells used for the count of the velocity.

The observed anterograde velocity of vesicular GFP-PrP^C (50~ nm/s) was comparable to the speed of KIF5-driven movement in the neurites. Therefore, next we examined the possible involvement of motor protein KIF5 for the anterograde movement of vesicular GFP-PrP in the neurite by injecting KIF5 antibody into the cells. As shown in the (Figure 4), liposome injection of anti-KIF5 IgG into the stably expressing and differentiated cells selectively blocked the anterograde movement of vesicular GFP-PrP^C in the neurites. In addition, neurite-associated bulges with excluded PrP^C signals were produced (Figures 4 E-L). Cells treated with preimmune IgG showed normal anterograde movement in the neurites and no bulges (Figures 4 A-D).

Figure 4: Antibody treatment of vesicular GFP-PrPC. Preimmune IgG injection of NGF differentiated cells stably expressing GFP-PrP (Panels A-D). Anti- KIF5C antibody treatment selectively produces neurite-associated bulges that lacked PrPC signals (Panels E-H; each magnified images shows on the panels I-L).

PrP^C seems to play an important role in subcellular compartmentation that occurs distant from the cell body, such as in synapses and neurites. For example, PrP^C is expressed at high levels in synapses, suggesting an important role in neuronal function that might have vital implications for synaptic homeostasis [20] including synaptic inhibition [21] and copper metabolism [22]. In the neurites, interactions between the neural cell adhesion molecule (NCAM) and PrP^C promote neurite outgrowth [23]. The establishment of an N2a cell line that stably expressed GFP-PrP^C allowed us to perform detailed real-time imaging analysis of vesicular GFP-PrP^C; in this case, PrP^C trafficking in live N2a cell neurites. The most significant finding was that the velocity of anterograde kinesin (KIF4)-driven movement was reduced by half and fell within the range of KIF5-driven motility, while the retrograde dynein-driven movement remained unchanged.

On the other hand, an alternative view holds that changing the number of motors should not affect the velocity of a vesicle if the motors are kinesins. This view originates from early kinesin gliding assays conducted in buffer, which showed that the velocity is constant over a broad range of kinesin surface densities [32]. Thus, the mechanism by which transported vesicles change their speed remains controversial. Our observations suggest that the motor switch between KIF4 and KIF5 is an underlying mechanism for the velocity change that occurs in a subcellular localization-dependent manner. The precise switching mechanisms of KIF motors, i.e., whether the mode of PrP^C trafficking observed in the current study is a widespread phenomenon, remains an intriguing question [25,33].

This study was supported by Grants-in-Aid from the Ministry of Health, Labor and Welfare and the Ministry of Education, Culture, Sports, Science and Technology, Japan.

1. Prusiner SB (1998) Prions. Proc Natl Acad Sci U S A 95: 13363-13383.
2. Rogers M, Serban D, Gyuris T, Scott M, Torchia T, et al. (1991) Epitope mapping of the Syrian hamster prion protein utilizing chimeric and mutant genes in a vaccinia virus expression system. J Immunol 147: 3568-3574.
3. Pan KM, Stahl N, Prusiner SB (1992) Purification and properties of the cellular prion protein from Syrian hamster brain. Protein Sci 1: 1343-1352.
4. Taraboulos A, Scott M, Semenov A, Avrahami D, Laszlo L, et al. (1995) Cholesterol depletion and modification of COOH-terminal targeting sequence of the prion protein inhibit formation of the scrapie isoform. J Cell Biol 129: 121-132.
5. Shyng SL, Heuser JE, Harris DA (1994) A glycolipid-anchored prion protein is endocytosed via clathrin-coated pits. J Cell Biol 125: 1239-1250.
6. Shyng SL, Moulder KL, Lesko A, Harris DA (1995) The N-terminal domain of a glycolipid-anchored prion protein is essential for its endocytosis via clathrin-coated pits. J Biol Chem 270: 14793-14800.
7. Nunziante M, Gilch S, Schätzl HM (2003) Essential role of the prion protein N terminus in subcellular trafficking and half-life of cellular prion protein. J Biol Chem 278: 3726-3734.
8. Lee KS, Magalhães AC, Zanata SM, Brentani RR, Martins VR, et al. (2001) Internalization of mammalian fluorescent cellular prion protein and N-terminal deletion mutants in living cells. J Neurochem 79: 79-87.
9. Magalhães AC, Silva JA, Lee KS, Martins VR, Prado VF, et al. (2002) Endocytic intermediates involved with the intracellular trafficking of a fluorescent cellular prion protein. J Biol Chem 277: 33311-33318.
10. Negro A, Ballarin C, Bertoli A, Massimino ML, Sorgato MC (2001) The metabolism and imaging in live cells of the bovine prion protein in its native form or carrying single amino acid substitutions. Mol Cell Neurosci 17: 521-538.
11. Lorenz H, Windl O, Kretzschmar HA (2002) Cellular phenotyping of secretory and nuclear prion proteins associated with inherited prion diseases. J Biol Chem 277: 8508-8516.
12. Ivanova L, Barmada S, Kummer T, Harris DA (2001) Mutant prion proteins are partially retained in the endoplasmic reticulum. J Biol Chem 276: 42409-42421.
13. Hachiya NS, Watanabe K, Sakasegawa Y, Kaneko K (2004) Microtubules-associated intracellular localization of the NH(2)-terminal cellular prion protein fragment. Biochem Biophys Res Commun 313: 818-823.
14. Butler DA, Scott MR, Bockman JM, Borchelt DR, Taraboulos A, et al. (1988) Scrapie-infected murine neuroblastoma cells produce protease-resistant prion proteins. J Virol 62: 1558-1564.
15. Kuwahara C, Takeuchi AM, Nishimura T, Haraguchi K, Kubosaki A, et al. (1999) Prions prevent neuronal cell-line death. Nature 400: 225-226.
16. Schliwa M, Woehlke G (2003) Molecular motors. Nature 422: 759-765.
17. Pollard TD (2003) The cytoskeleton, cellular motility and the reductionist agenda. Nature 422: 741-745.
18. Howard J, Hyman AA (2003) Dynamics and mechanics of the microtubule plus end. Nature 422: 753-758.
19. Hachiya NS, Watanabe K, Yamada M, Sakasegawa Y, Kaneko K (2004) Anterograde and retrograde intracellular trafficking of fluorescent cellular prion protein. Biochem Biophys Res Commun 315: 802-807.
20. Brown DR (2001) Prion and prejudice: normal protein and the synapse. Trends Neurosci 24: 85-90.
21. Collinge J, Whittington MA, Sidle KC, Smith CJ, Palmer MS, et al. (1994) Prion protein is necessary for normal synaptic function. Nature 370: 295-297.
22. Brown DR, Qin K, Herms JW, Madlung A, Manson J, et al. (1997) The cellular prion protein binds copper in vivo. Nature 390: 684-687.
23. Santuccione A, Sytnyk V, Leshchyns'ka I, Schachner M (2005) Prion protein recruits its neuronal receptor NCAM to lipid rafts to activate p59fyn and to enhance neurite outgrowth. J Cell Biol 169: 341-354.
24. Hirokawa N, Takemura R (2004) Kinesin superfamily proteins and their various functions and dynamics. Exp Cell Res 301: 50-59.
25. Hirokawa N (1998) Kinesin and dynein superfamily proteins and the mechanism of organelle transport. Science 279: 519-526.
26. Peretti D, Peris L, Rosso S, Quiroga S, Cáceres A (2000) Evidence for the involvement of KIF4 in the anterograde transport of L1-containing vesicles. J Cell Biol 149: 141-152.
27. Setou M, Seog DH, Tanaka Y, Kanai Y, Takei Y, et al. (2002) Glutamate-receptor-interacting protein GRIP1 directly steers kinesin to dendrites. Nature 417: 83-87.
28. Nakata T, Hirokawa N (2003) Microtubules provide directional cues for polarized axonal transport through interaction with kinesin motor head. J Cell Biol 162: 1045-1055.
29. Mallik R, Gross SP (2004) Molecular motors: strategies to get along. Curr Biol 14: R971-982.
30. Visscher K, Schnitzer MJ, Block SM (1999) Single kinesin molecules studied with a molecular force clamp. Nature 400: 184-189.
31. Svoboda K, Block SM (1994) Force and velocity measured for single kinesin molecules. Cell 77: 773-784.
32. Howard J, Hudspeth AJ, Vale RD (1989) Movement of microtubules by single kinesin molecules. Nature 342: 154-158.
33. Adachi N, Kohara K, Tsumoto T (2005) Difference in trafficking of brain-derived neurotrophic factor between axons and dendrites of cortical neurons, revealed by live-cell imaging. BMC Neurosci 6: 42.
