Research Article - (2016) Volume 7, Issue 4
Keywords: Microrecording; Macrostimulation; Parkinson’s disease; Deep brain stimulation; Subthalamic nucleus
Parkinson’s disease (PD) is a cause of disability in 1.5% of the population aged over 60 years of age and is an important socioeconomic problem. So far, no specific treatment for this neurodegenerative process is available. Symptomatic treatment of PD consists mainly of pharmacological supplementation and modulation of the dopaminergic system.
In 4–10% of patients with PD, insufficient pharmacological treatment may force a neurosurgical treatment trial. Neurosurgical ablative treatment (pallidotomy, thalamotomy) of PD was introduced in the 1940s and was effective in selected patients. However, the risk of irreversible neurological deficits after the surgery was the main cause of progress of functional neurosurgery at the time of the introduction of L-dopa for the treatment of PD.
A breakthrough in the neurosurgical treatment of movement disorders was the introduction of modern systems for deep brain stimulation (DBS) in the 1980s. DBS has similar efficacy to that observed after ablative surgery, with far less risk of permanent complications. A milestone for the understanding and treatment of PD was the development in 1976 of a laboratory model of dopaminergic system disorders and identification of the optimal surgery target for the treatment of major PD symptoms in the subthalamic nucleus (STN). Due to the occurrence of serious side-effects after surgical ablation of the subthalamic nucleus (hemibalismus), only a few centres had used this target before the introduction of DBS surgery [1-5].
The introduction of modern techniques of neuroimaging, including MRI, allowed very precise identification of brain structures, including the STN [6-18], in a minimally invasive manner. However, the anatomic identification of STN by MRI may not correspond to its neurophysiological activity, thus hindering achievement of the optimum therapeutic effect [19-26].
Patients
The study group comprised 66 consecutive patients (32 women and 34 men) who underwent implantation of a 131 STN DBS system because of PD. Microrecordings were conducted with 462 trajectories.
Age at surgery was on average 57.6 (38–76) years and disease duration was on average 10 (6–21) years. Patients were qualified for surgery based on the criteria contained in CAPSIT-PD [27-30]. The qualification process was performed in reference centers involved in the treatment of neurological diseases. The patients who qualified for the surgery were in stages II-IV disease according to the Hoehn-Yahr scale, with a mean daily demand for L-dopa of 1100 mg (95% CI: 938– 1262). The mean UPDRS III was 49.2 (95% CI: 45.5–52.8) in the OFF and 20.9 (18.3–23.8) in the ON phase (Table 1).
| Mean (95%CI) | Median (Range) | |
|---|---|---|
| Age [yrs] | 57.6 (55,7-59,5) | 58 (38-76) |
| UPDRS III before DBS | ||
| - OFF phase | 49.2 (45,6-52,8) | 48 (15-77) |
| - ON phase | 20.9 (18,3-23,8) | 19 (7-53) |
| - (OFF-ON)/OFF ratio (%) | 52.0% (47,7-56,4) | 54.4% (21,3-8,4) |
| Active DBS treatment | ||
| - ON phase | 9.8 (7,9-12,2) | 8 (2-47) |
| Improvement after DBS † | 46.3% (40,4-52,1) | 49.2% (9,1-90,0) |
Table 1: Demographic data († Calculated according to the equation (III UPDRS score in ON phase before DBS treatment minus III UPDRS score in ON phase with DBS)/III UPDRS score in ON phase before DBS treatment).
Surgery and neurophysiological studies
All patients underwent 1.5 T MRI. Scans were performed using the following protocol: T2 axial 1.5 mm/slice gap 0.2, T1 contrast axial + 1.5 mm/slice gap 0.2. Pharmacological treatment was discontinued at least 12 h before surgery. Patients did not receive anticoagulation for at least 7 days before surgery except for low molecular weight heparin. Procedures were carried out under local and general anesthesia. After a CT with stereotactic frame acquisition (with contrast, every 1.5 mm, no gantry tilt), MRI image fusion was performed (Framelink 5.3, Medtronic).
The patient was then moved to the operating theatre. The indirect method was used to identify the target point (mid. AC-PC: 11, -2, -4) and directly by modifying the target depending on the MRI image [7-18]. After determining the entry point using a stereotactic frame (Leksell, Elekta), the burr hole was made around the coronal suture (3– 5 cm lateral to the midline) and a skull-fastening system was attached to the micro- and macroelectrode positioning systems. During macrostimulation the following clinical symptoms were assessed: rigidity, bradykinesia, resting tremor and side-effects [31-34]. The macrostimulation was supervised and conducted by a neurophysiologist and neurologist or neurosurgeon trained in the evaluation of extrapyramidal diseases. The microrecording and macrostimulation have been archived.
Microelectrode recordings (MERs) of STN neuronal activity and adjacent structures were carried out using a biological signal amplifier and software devoted to recording and analysing extracellular potentials generated by single neurons (Leadpoint®, Medtronic). Extracellular recordings of spontaneous activity of neurons, the target structure and neighbouring structures (thalamus, zona incerta, substantia nigra), were performed for 2 to 5 trajectories (central, anterior, medial, lateral and posterior). Before each recording, electrode resistance was measured (minimum electrode resistance was >1 kΩ) and potential sources of artifacts eliminated. Electrophysiological activity was recorded from -10 mm to + 6 mm from the target point. The bandwidth for recording was 3 Hz to 10 kHz. Spontaneous activity of neurons was recorded at intervals of 1 mm. The recording time was at least 30 s, 15 s after the end of micromanipulator motion of the electrodes. The spontaneous activity of the neurons was analysed visually and the average frequency of APs of neurons located at the microelectrode was also analysed. STN neurons were identified based on the following criteria: a two-fold increase in the amplitude of background activity and irregular discharges of action potentials in the frequency range of 30–60 Hz. The reticular part of the substantia nigra (SNr) was identified as regular discharges of APs with a frequency of 70–90 Hz, and the amplitude of the background potentials were lower than in the STN. Each trajectory was assessed based on the microrecording examination limits on the STN. The trajectory that registered the best STN activity was chosen for electrical stimulation to assess the effectiveness of the DBS. In the case of unsatisfactory clinical efficacy or adverse reactions to lowintensity stimulus (<3 mA), stimulation of STN was situated at points within the next trajectory. Macrostimulation was performed using a rectangular current stimulus with a duration of 60 μs supplied with a frequency of 130 Hz in the current range, from 0 to 8 mA.
The current amplitude was increased by 1 mA to evaluate the clinical effect of stimulation. If any side-effects occurred, the stimulation current was not increased. If adverse reactions were observed at low stimulus intensity (<3 mA), stimulation was initiated in the next trajectory. The effect of stimulation was evaluated clinically with the influence of the following symptoms: rigidity, bradykinesia and tremor. The final locations for permanent implantation of electrodes were selected based on the effectiveness of the stimulation and the lack of side-effects. After identifying the optimal target for stimulation, the stimulating electrode (Medtronic, 3389) was removed and a permanent brain electrode was introduced under the control of a fluoroscope. The electrode was attached to the bone using a latch (Stimlock, Medtronic). After the closure of the wound, the stereotactic frame was removed. After receiving antiparkinsonian medication the patient was subjected to general anesthesia. After the liaison of wire under the skin, the stimulator was introduced into the subcutaneous tissue around the subclavian or abdominal wall. Control imaging studies (CT) were performed within 24 h of surgery. The pacemaker programming process took place 6 weeks after surgery. In two patients the electrodes were implanted unilaterally; in the remaining cases, bilaterally. In one patient, the stimulating system was removed and reimplanted due to local infection.
Variables measured on a nominal or ordinal scale are presented in percentages with a 95% confidence interval (95% CI). Normal qualitative variables are presented both by the arithmetic mean of 95% and the median with the range of values in cases of the non-Gaussian distributions. The comparative analysis of qualitative variables routinely used the chi-square test and, if the expected frequencies <5 exact two-sided, Fisher’s exact test. Quantitative variables at subsequent time points were compared using the Wilcoxon test sequence pairs. A level of p<0.05 was adopted for all tests of statistical significance. Statistical calculations were performed using STATISTICA 8.0 PL (StatSoft, 2008).
In the initial period, cathodal stimulation on contacts (C +, 0-, 1-) was applied with a frequency of 130 Hz, with a pulse width of 60 μs and an amplitude of up to 1.0 V [35]. Then, depending on the response, the parameters of stimulation were modified by introducing bipolar stimulation and increasing the amplitude to 2.5 V. Controlled clinical evaluations were carried out after 6 months in 50 (75.6%) patients. Reductions in severity of the neurological syndrome quantified by the UPDRS III were evaluated on average at 46.3% (9.1– 90%, p<0.001). The mean daily dose of L-dopa was 525 mg (95% CI: 347–704), which was a significant reduction of 48% as compared to the state before DBS.
Among 66 patients treated with permanent 131 electrodes, the most frequent final positioning trajectories, based on neurophysiological assessment, were as follows: Anterior trajectories (49.2%), central (35.6%) and lateral (13.6%).
The medial and posterior trajectories were chosen in individual cases (Table 2). Differences in the incidence of choice of trajectories were statistically significant (p<0.05) (Figure 1). The depths at which electrodes were left permanently were in all cases different from what had been planned preoperatively. The electrode was in most cases left at a depth of 2 or 3 mm (58.3%), followed by 1 or 5 mm (36.4%) and 5 or 6 mm (5.3%) (Figure 2 and Table 2). Differences in frequency between successive groups of depth were statistically significant (p<0.05) (Figure 2).
| N=131 | % (95%CI) | |
|---|---|---|
| Final trajectory | ||
| Medial | 2 | 1,5% (0,4-5,4) |
| Lateral | 18 | 13,6% (8,8-20,5) |
| Posterior | 0 | 0,0% (0,0-2,8) |
| Central | 47 | 35,6% (28,0-44,1) |
| Anterior | 65 | 49,2% (40,9-57,7) |
| Final depth of electrode placement | ||
| 1+ mm | 24 | 18,2% (12,5-25,6) |
| 2+ mm | 40 | 30,3% (23,1-38,6) |
| 3+ mm | 37 | 28,0% (21,1-36,2) |
| 4+ mm | 24 | 18,2% (12,5-25,6) |
| 5+ mm | 4 | 3,0% (1,2-7,5) |
| 6+ mm | 3 | 2,3% (0,8-6,5) |
Table 2: Final trajectories and final electrode placement in respect to planned in MRI target.

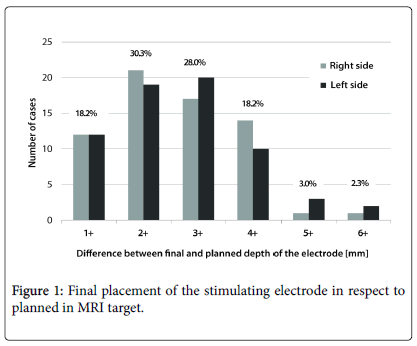

Figure 1: Final placement of the stimulating electrode in respect to planned in MRI target.

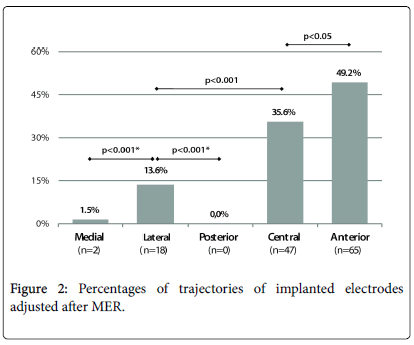

Figure 2: Percentages of trajectories of implanted electrodes adjusted after MER.
There was one infectious complication (1/131 implantation-0.76%), which caused the removal of the system. After three months and the end of antibiotic therapy, the system was effectively reimplanted. Four patients (4/131 implantation-3%) had erosion of the skin over the pacemaker or connector. No intracranial bleeding was reported at the control CT scan in the presented group of 66 patients with implanted 131 DBS systems in which 462 MER trajectories were performed.
In the 1940s, most authors were already using intraoperative stimulation of the deep brain structures as a test for ‘reverse lesions’ to identify certain structures (i.e., globus pallidus) during ablative treatments. Intraoperative neurophysiological tests could predict the therapeutic effect of ablative surgery. After turning on the stimulation, there was improvement in PD symptoms; once it was turned off, symptoms recurred. Maintaining the intraoperative and perioperative stimulation of selected cases improved the effectiveness and safety of ablative procedures. The next natural step was the introduction of permanent pacemakers for DBS [1-3].
In the last two decades functional neurosurgery has developed rapidly, mainly due to the introduction of DBS. In different DBS therapy centers, intraoperative neurophysiological evaluation and/or neuroimaging planning is used to identify the target. Neuroimaging methods of STN identification frequently use a high-pole MRI. Direct target identification is based on high-resolution T2 scans. Indirect identification is based on the location of the anterior and posterior commissure, the nucleus rubber, mammillary bodies and the third ventricle wall. According to some authors, an MRI is sufficient to identify an STN, especially if it is carried out on a high-pole MRI. However, most authors confirm the position of an STN intraoperatively with neurophysiological studies, including the use of microrecording, macrostimulation or both [8,9,13,14,17,19].
The role of neurophysiological evaluation
MER of neuronal activity has been proven effective in determining the boundaries of a subthalamic nucleus. Analysis of the STN neuronal activity is an important complement to the stereotactic planning of the implantation target for a DBS electrode. MER allows for the evaluation of the real-time activity of STN neurons. This allows the optimal target for permanent electrode placement to be determined neurophysiologically on the basis of trial macrostimulation along the trajectories initially determined by MER [19,21,24,31-34].
In the present study it was found that the most effective clinically permanent electrode trajectories were the anterior, central or lateral trajectories. Stimulation along these trajectories was associated with the largest reduction of Parkinsonian symptoms (with low currents used and no side-effects) evaluated intraoperatively. These observations were further confirmed after the implantation of a DBS system. In long-term follow-up, the improvement in clinical status of patients and the reduction of dopaminergic drugs dosage was about 50%, which is similar to previous reports [36-41].
The mechanism of neurostimulator action is not fully understood. The essential idea of deep brain stimulation action is based on inhibiting structures that are excessively active in the pathological pathways of basal ganglia. The main mechanisms of DBS action are the depolarisation blockade of neurons (the inactivation of sodium ion channels), synaptic depolarisation inactivation, antidromal release of GABA within the basal ganglia network, and activation of local inhibitory mechanisms within the DBS target [6]. The most significant feature of DBS treatment is the possibility of reversible and complete inhibition of hyperactive structures. It is therefore logical and reasonable to implant DBS electrodes in the parts of the target structures that are the most hyperactive—the activity of which is to be modulated. Because the neuroimaging determination of the target point was similar in all patients, the profile of the trajectory chosen as the permanent location of the electrodes (based on neurophysiological evaluation) indicates that the most effective treatment seems to be the stimulation of the anterolateral-area STN. These results are consistent with the previously described clinical and anatomical data, according to the previously described most optimal neurostimulation region, which is the anterior dorso-lateral part of the STN (anterior dorsallateral Forel axis of the forebrain) [36,37].
However, this area, although anatomically defined, is not functionally uniform, and the optimal region for stimulation effects can be in the front (the anterior trajectory) or side (the lateral trajectory) of the STN. Determining the most effective and safe location for DBS therapy is only possible using MERs and test stimulations, which are the only tests that can determine the effects of stimulation of certain parts of the STN in real time and in awake patients. Determining the target based solely on morphological data, even with a high-pole MRI, may not be compatible with a functionally determined target for DBS [21-24,31-34]. Despite the fact that neurophysiological research requires the cooperation of additional staff and is time-consuming, these facts seem to confirm the efficacy of the protocol.
The integrative approach in planning the final target for a DBS electrode (morphological—neuronavigation, neurophysiologicalmicrorecording and functional—MER and intraoperative macrostimulation) allows for the determination of the optimal target for permanent implantation of electrodes. As shown by these results, the final place of implantation of DBS electrodes in most cases was on a different level—2 to 3 mm from the planned target, and only 35% of the central trajectory. Optimising the position of the permanent electrode is important for the following reasons: the choice of a target in which the smallest stimulus intensity causes significant clinical effect greatly extends the life of DBS electrodes. The target associated with the lowest rate of side-effects significantly improves the quality of permanent pacing.
DBS implantation is subject to a small risk of bleeding complications, similar to that observed for other stereotactic surgery, and ranges from 0.6 to 3.3%; the incidence of intracranial bleeding producing clinical symptoms remained at >1% [32,42-50]. Most authors recognise the use of several microelectrodes to be safe; there was no correlation between the risk of bleeding and the number of microelectrodes used [32,42,44-48]. In a retrospective analysis, Mikos et al. described the incidence of bleeding complications up to 4.3%— however, with the use of transventricular electrodes [43]. Hariz and Fodstad drew attention to the increased risk of bleeding complications when using a larger number of trajectories in their review paper [49], but this review was also based on abstract communications and chapters that were not subject to assessment by reviewers in the process of publication [49]. The analysis, covering up to 644 patients undergoing ablation or DBS, showed no correlation between the number of trajectories and the risk of bleeding during DBS surgery [44,47].
Our results indicate that target identification based on morphological data in most cases is not identical with neurophysiologically assessed targets for deep brain stimulation. There is a risk of suboptimal effects during the implantation of a DBS system based only on neuroimaging. Therefore, intraoperative neurophysiological evaluation seems to be fully justified and should be an integral part of the procedure, despite the increased length of surgery and the need to engage additional staff (a neuroscientist and a neurologist).
