Developmental dysplasia of the hip (DDH) is recognised as a spectrum of abnormalities affecting the hip in infants and children. From the physiologically immature hip, to pathological acetabular dysplasia with or without dislocation or subluxation of the femoral head [1]. As a result, the prevalence of DDH varies from 1.6-28.5 cases per 1000 live births [2] due to the absence of a universal definition within the literature. DDH is a common and preventable cause of disability [3] and forms a large portion of paediatric orthopedic practice. A later diagnosis of DDH leads to an increased risk of surgical management and long-term complications such as early degenerative arthritis and gait disturbances [4,5]. These currently represent a large burden of care and DDH is reported as the underlying aetiology in approximately one third of hip replacements of those under 65 [6].

In January 2016, Cardiff and Vale University Health board (CAVUHB) implemented a selective screening ultrasound program for DDH, in accordance with Newborn and Infant Physical Examination (NIPE) screening program guidelines [7]. Prior to 2016, CAVUHB used only the Ortolani and Barlow clinical examinations in primary care to screen for DDH. These tests are performed as part of the newborn and 6-week neonatal examinations with an abnormal examination resulting in referral for ultrasonographic assessment for DDH.

The Ortolani and Barlow clinical examinations have very high specificity but poor sensitivity [8]. The Ortolani manoeuvre is around 60% sensitive and the Barlow manoeuvre has a positive predictive value (PPV) of only 22%. The poor sensitivity of these tests is as a result of their inability to detect stable acetabular dysplasia which requires further ultrasound imaging for detection [9]. This high proportion of false negative results lead to a large proportion of DDH cases being missed. Therefore, without selective screening in CAVUHB, a substantial proportion of DDH cases were missed often requiring costly and invasive surgical treatments.

The importance of early detection and treatment has meant that nationwide clinical screening for DDH has been commonplace in the United Kingdom since the 1930’s. National NIPE guidelines recommend ultrasound screening of neonates with risk factors for DDH and clinical screening at the newborn and 6-8 week neonatal check-ups. Common opinion describes that 60% of DDH is associated with factors including female sex, family history, breech presentation, caesarean section, foot deformities, intra uterine growth restriction (IUGR), and oligohydramnios.

These risk factors are derived from the Standing Medical Advisory Committee (SMAC) guidance [10], however, there are no references from the literature published around the time of release that can confirm this statement. Therefore, this guidance and our current understanding of the risk factors associated with DDH is most likely based on decades old expert opinion/level 5 evidence. These risk factors are included in the CAVUHBs screening criteria to identify those at risk. However, if any of these risk factors are insignificant then resources are wasted and an increased rate of overtreatment may be seen. Hence, we have conducted analysis of risk factor based referrals and their association with outcome and treatment. Furthermore, as there is no up-to-date data on cost the effectiveness or impact of the inclusion of individual risk factors in the screening criteria for a large UK population, we conducted a cost benefit analysis of this new screening program.

A retrospective study of all neonatal hip ultrasound scans within CAVUHB between 1^st January 2016 and 31^st December 2016. A reporting radiologist, an orthopedic consultant, and a medical undergraduate each separately classified the scans according to Graf [11]. Demographics such as age and sex were recorded alongside alpha angle, Graf classification and treatment success. Successful treatment was defined as the hip being measured as a Graf type I hip (>60 degrees) on an ultrasound, or a reported acetabular angle of ≤ 30 degrees on X-ray, as defined by Tönnis [12].

Treatment information of each patient was obtained from their hospital notes. Forty-four patients were excluded due to lack of information regarding their referral. A further three patients were excluded due to a lack of follow up or having not completed treatment. Costings for clinic appointments, ultrasounds, and treatments were taken from the NHS 2016/17 National and National tariff workbook or if unavailable the most recent appropriate literature [13].

Between the 1^st of January 2016 and the 31^st of December 2016, there were 5,288 live births within CAVUHB. Five hundred ninety-two (11%) were referred for clinical and radiographic assessment of the hip, 106 (2%) had a diagnosis of DDH, and 21 (0.39%) received treatment for developmental dysplasia of the hip of the 21 patients that required treatment, 10 (47.6%) presented <6 weeks of age, 8 (38.1%) were aged between 6-24 weeks and the remaining 3 patients (14.3%) presented for the first time >24 weeks of age. The low numbers of late-presenting patients requiring treatment highlights the effectiveness of the selective screening program in detecting treatable DDH.

Treatment increased in complexity with the age of diagnosis. Of those presenting at <6 weeks, 42.9% (n=3) required surgical reduction whilst of those that presented over 24 weeks, 100% (n=3) required surgical reduction (Figure 1). Therefore, if the DDH is detected early, ideally <6 weeks, there is a higher likelihood that conservative methods will be sufficient to treat DDH thus reducing the cost and associated morbidity associated with surgical treatment.

Figure 1: A bar chart representation of the proportion of treatments, either abduction splintage or surgical reduction, undertaken within each age at presentation category. The number within each designated region represents the number of patients.

The cost of treatment increased with the age of presentation. The group presenting <6 weeks the average cost of treatment was £4354 (range £1516 - £14454) and for those presenting over >24 weeks the average cost of treatment was £14431 (range £10724 - £20876).

Five-hundred forty-eight patients were included in this study, of these 416 (75.9%) were referred due to the presence of risk factors. 78.1% (n=350) of the bilateral Graf type I hips, 77.2% (n=79) of type IIa-IV hips and 38.1% (n=8) of those that required treatment were referred due to the presence of risk factors (Figure 2).

Figure 2: A bar chart representation of the proportion of referrals made due to abnormal examination or the presence of risk factors. The number within each designated region represents the number of patients referred within the set criteria.

As the severity of DDH increased, the reason for referral was more likely to be abnormal examination. In those with grade II hips the rate of referral due to risk factor was 79.4% (n=77) but in grade IV hips it was 20% (n=1) (Figure 3).

Figure 3: A bar chart representation of the proportion of referrals made due to abnormal examination or the presence of risk factors by Grade of DDH at presentation. The number within each designated region represents the number of patients referred within the set criteria.

Inclusion of risk factors into screening criteria increased the number of ultrasounds performed at UHW significantly. From a mean of 189 (range 171-214) scans between 2010-2015, to 721 scans in 2016 (Figure 4). This four-fold increase in the number of scans and clinic appointments increased the recourses dedicated to DDH screening and diagnosis.

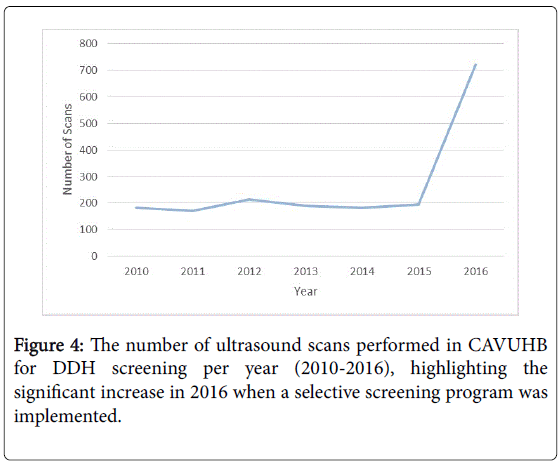

Figure 4: The number of ultrasound scans performed in CAVUHB for DDH screening per year (2010-2016), highlighting the significant increase in 2016 when a selective screening program was implemented.

The estimated total cost of the screening program, including clinic appointments and treatment was £245,068 (Table 1).

Table 1: A table representing the cost breakdown by appointment type and number with treatment of all patients included in the DDH screening program from 2016.

The total cost of screening and treatment for those with risk factors was £109,041, 44.5% of the total cost of the screening and treatment of DDH in CAVUHB during 2016. The total cost of screening for DDH in CAVUHB in 2016 was £130951. Of this, the cost screening for risk factors was £96914 (Table 2), therefore screening for risk factors made up 74% of the total cost of screening.

Table 2: A table showing the cost breakdown of screening for all risk factors by appointment, type and number, and treatment of all patients who were referred due to risk factors in the DDH screening program 2016.

Eight patients required treatment following referral due to their risk factors, with the total cost of screening being £96,914 equating to a cost per favorable outcome (defined as early detection and successful treatment without surgical intervention) of £12,114. Breech and family history were the most common reasons for referral across all patient groups except for bilateral type 1 (normal) hips. Had only breech and family history been included in the referral criteria, all of the treated cases of DDH screened due to risk factors would have still been detected. Whilst, incurring a reduced total cost of screening of £72758 (Table 3), and a cost per favorable outcome of £9,095. Therefore, including only risk factors that are part of the referral criteria reduces the cost of screening by £24,156 (25%), in 2016. As such, CAVUHB’s selective screening program was significantly more cost-effective without increasing the risk of late-presenting DDH in the neonatal population.

Table 3: A table outlining the cost breakdown by appointment, and treatment of all patients who were referred due to breech or Family history risk factors in the DDH screening program for 2016.

The earlier a child presents the less likely they are to require costly and invasive treatments [14] thus highlighting a need for early identification and treatment of DDH. All late presenting patients in this study had grade IV DDH that required open reduction, whilst the majority of those who were referred early (<6 weeks), were treated with simple abduction splintage techniques such as the Pavlik harness. The patients who presented late did not have the risk factors required for selective screening and their DDH was detected much later, requiring more costly and invasive treatment. The only solution to these missed cases is the implementation of a universal screening program. The debate between universal and selective screening programs for DDH is ongoing [15] but current NIPE standards recommend a selective screening program only.

The establishment of new selective screening programmes incurs costs which can be rationalised by the inclusion of the most financially cost effective and statistically relevant risk factors. Within our cohort of those screened due to positive risk factors and positive for a diagnosis of DDH, all were referred either because of a third trimester breech presentation or due to a 1^st degree family history. Had screening criteria only included referral due to breech presentation or 1^st degree family history the cost per favorable outcome would be £9095, 39% cheaper than the average cost of treating a missed case of DDH and 25% cheaper than the current screening programs. Risk factors such as oligohydramnios, multiple gestations, and foot deformities (Congenital Talipes Equinovarus) were included in the referral criteria due to previous experience within the unit, however, may not be statistically significant risk factors for DDH [16]. Therefore, removal of these risk factors from the screening criteria may increase cost-efficiency and allows for more effective reallocation of much needed specialist time and resources. The selective screening for DDH has not been universally cost effective [17] and we have shown that by removing less significant risk factors that do not have a robust evidence base to justify their use, selective screening can be more cost-effective (25%) without increasing risk of late presenting cases of DDH.

The cost of screening of all newborns with risk factors per favorable outcome was £12114 and the cost of surgical intervention was £14431. However, this is based purely on the tariff for procedures and excludes any additional costs such as complications, clinic follow-up, or excess hospital stay, and is therefore a substantial underestimate. Even whilst underestimating the cost of surgical treatment, the cost of screening for risk factors per favorable outcome is 18% lower than the estimated cost of treating a missed case of DDH. As such, screening is not only cost effective, but avoids the physical and social consequences of invasive surgery.

A low rate of successful detection of DDH was demonstrated by neonatal clinical examination. Only 22.8% of patients with ultrasound confirmed DDH were referred with an abnormal examination, supporting the contention that both the newborn and six-week clinical screening checks are unreliable. However, ultrasonographic diagnosis of DDH has a higher prevalence of abnormality than clinical diagnosis, raising the possibility of an over diagnosis of the condition which may have led to over treatment. The Medical Research Council (MRC) working party on congenital dislocation of the hip estimated the incidence of surgical procedures for treatment of DDH as 1-2 per thousand live births in a clinically screened population [10]. In this cohort, 1.5 per thousand live births required surgical treatment for DDH, suggesting that there is no overtreatment of DDH because of the selective screening program. This contradicts a review of Shipman et al. [18] which claims that selective screening for DDH may lead to over-treatment. Currently training for the neonatal hip examination consists of two and a half hours of theoretical training and practice experience with a model. Therefore, one area for reducing the proportion of missed cases alongside selective or universal screening would be to increase the training and experience of clinicians in a controlled environment.

One limitation of this study is that the age at presentation was calculated from the date of birth not expected delivery date due to an absence of available data. In addition, as this data was collected from only CAVUHB we could not account for geographical variation of DDH incidence. However, CAVUHB contains a large, diverse population that can reasonably be applied to other UK and European populations.

In conclusion, the age of presentation to medical services increases alongside the complexity and invasiveness of treatment. Thus, late presentation causes increased morbidity to patients and incurs a vastly higher cost of treatment. This, in conjunction with the cost effectiveness of CAVUHB’s selective screening program clarifies the success of its implementation. However, the screening process can be made more cost-effective without reducing rates DDH detection, by omitting statistically insignificant risk factors from the screening criteria.

Several limitations of this study should be noted. First, our findings cannot be generalized to all chronic musculoskeletal patients. Second, only the short-term effects of the intervention were examined as the study was limited to 4 sessions and had no follow-up assessment. Third, there is no a clear conclusion about the results of Recognise Online™ programme, as not all the patients had the same computer knowledge and familiarization with its use.

The present pilot study has shown that a novel Mirror Therapy procedure in combination with the application of an aggressive GMI protocol can be useful in reducing pain and restoring the range of motion (active shoulder flexion) and functionality in patients with painful shoulder conditions. Based on the findings of this study it can be concluded that various chronic musculoskeletal disorders may have another significant variable to be taken into account when planning rehabilitation programmes, which is sensitization of the central nervous. Randomized control studies are needed to reinforce the findings of the present pilot study. These surveys should use the present or other modifications of GMI method and evaluate their effectiveness in the rehabilitation of various human joints painful syndromes.

1. Mahan ST, Katz JN, Kim YJ (2009) To screen or not to screen? A decision analysis of the utility of screening for developmental dysplasia of the hip. J Bone Joint Surg Am 91: 1705-1719.
2. Dezateux C, Rosendahl K (2007) Developmental dysplasia of the hip. Lancet 369: 1541- 1552.
3. Gulati V, Eseonu K, Sayani J, Ismail N, Uzoigwe C, et al. (2013). Developmental dysplasia of the hip in the newborn: A systematic review. World J Orthop 18: 32-41.
4. Dunn PM, Evans RE, Thearle MJ, Griffiths HED, Witherow PJ (1985) Congenital dislocation of the hip: early and late diagnosis and management compared. Arch Dis Child 60: 407-414.
5. Bache CE, Clegg J, Herron M (2002) Risk factors for developmental dysplasia of the hip: ultrasonographic findings in the neonatal period. J Pediatr Orthop B 11: 212-218.
6. Furnes O, Lie SA, Espehaug B, Vollset SE, Engesaeter LB, et al. (2001) Hip disease and the prognosis of total hip replacements. A review of 53,698 primary total hip replacements reported to the Norwegian Arthroplasty Register 1987-99. J Bone Joint Surg Br 83: 579-586.
7. Public Health England (2016) Newborn and Infant Physical Examination (NIPE) screening program standards.
8. Paton RW, Hinduja K, Thomas CD (2005) The Significance of at-risk Factors in Ultrasound Surveillance of Developmental Dysplasia of the Hip: A Ten Year Prospective Study. The J Bone Joint Surg Br 87: 1264-1266.
9. Murray KA, Crim JR (2001) Radiographic Imaging for Treatment and Follow-up of Developmental Dysplasia of the Hip. Semin Ultrasound CT MR 22: 306-340.
10. The Standing Medical Advisory Committee (SMAC) (1996) Screening for the detection of congenital dislocation of the hip. Department of Health and Social Security, London.
11. Graf R (1983) New possibilities for the diagnosis of congenital hip joint dislocation by ultrasonography. J Pediatr Orthop 3: 354-359.
12. Tönnis D (1976) Normal Values of the Hip Joint for the Evaluation of X-rays in Children and Adults. Clin Orthop Relat Res 119: 39-47.
13. Price KR, Dove R, Hunter JB (2013) Current screening recommendations for developmental dysplasia of the hip may lead to an increase in open reduction. Bone Joint J 95: 846-850.
14. Pollet V, Percy V, Prior H (2017) Relative Risk and Incidence for Developmental Dysplasia of the Hip. J Pediatr 181: 202-207.
15. Shorter D, Hong T, Osborn D (2013) Cochrane Review: Screening programmes for developmental dysplasia of the hip in newborn infants. Evid Based Child Health 8: 11-54.
16. Hundt M, Vlemmix F, Bais J, Hutton E, Groot C, et al. (2012) Risk factors for developmental dysplasia of the hip: a meta-analysis. Eur J Obstet Gynecol Reprod Biol 165: 8-17.
17. Sakthivel VK, Goddard M, Sabouni MY, Clarke NMP (2006) Selective Screening for DDH in Wessex-the Southampton experience. Orthopaedic Proceedings 88: 435.
18. Shipman SA, Helfand M, Meyer VA, Yawn BP (2006) Screening for developmental dysplasia of the hip: a systemic literature review for the US preventative services task force. Pediatrics 117: e557-576
